1/2.8″ USB2.0 Full HD Wearable Camera
WAT-05U2M
WATEC CO.,LTD.
Adopted the 180 degree wide angle lens
The position of the cable is selectable in 4 dimensions (top, bottom, left and right) depends on the application and installation
(Std. position: bottom) ※The other sides are available on request
Enable the live video transmission via the smartphone or tablet by its Wi-Fi or 4G/3G
Water resistant built for outdoor use (IPX7 compliance)
Specifications
Model Number WAT-05U2M
Pick-up element 1/2.8 inch BSI CMOS image sensor
Number of effective pixels 1945(H) × 1097(V)
Unit cell size 2.9μm × 2.9μm
Imaging system RGB primary color bayer arrangement mosaic filters on chip
Synchronizing system Internal
Scanning system Progressive
Output size 1920x1080, 1280x720, 640x480, 320x240
Max. frame rate 30 fps
Video compression MJPG, YUY2
Video output USB Video Class (Compatible)
Minimum illumination 0.3 lx F2.0 (AGC ON=36dB, Shutter=OFF)
0.07 lx F2.0 (AGC ON=36dB, Shutter=1/7.5 sec.)
Function settings Camera Viewer
AE mode Fixed 1/15, 1/7.5, 1/4 sec.
1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec.
EI 1/30 - 1/8000 sec.
1/7.5 - 1/8000 sec.
White balance ATW, MWB
AGC ON 0 - 36dBK
OFF
MGC 0 - 72dB (1dB step)
Gamma characteristics γ ≒USER (Level adjustable)
Back light compensation BLC
Sharpness Level adjustable
Interface USB (High speed)
Power supply USB +5V
Power consumption 0.85W (170mA)
Operating temperature -10℃–+50℃
Storage temperature -30℃–+60℃
Operating / Storage humidity 95% RH or less (Without condensation)
Standard lens M1720BC-12 (f1.7 F2.0)
Cable length 1.2m
Weight Approx. 45g
Accessories
System_requirements
Min. System Requirements CPU:800MHz or faster  RAM:512MB or larger  Others:USB2.0 Port
Recommended System Specifications CPU:Intel® Core TM i Series  RAM:2GB or larger
Others:USB2.0 Port,1920x1080 or better resolution display
Operation Confirmed OS Windows 7 32bit/64bit, Windows 8 32bit/64bit, Windows 8.1 32bit/64bit,
Windows 10 32bit/64bit, Android 4.0 or newer

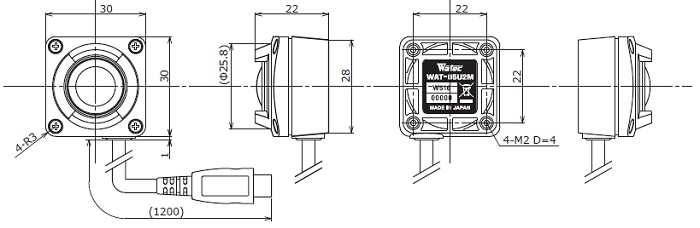

Dimensional outline drawing

Max. frame rate
Output size Aspect ratio The number of pixels Output system Frame rate
1920×1080
(HD1080p)
16:9 2,073,600 YUY2 5fps
MJPG 30fps/15fps
1280×720
(HD720p)
16:9 921,600 YUY2 7.5fps
MJPG 30fps/15fps
640×480
(VGA)
4:3 307,200 YUY2 30fps/15fps
MJPG 30fps/15fps
320×240
(Quarter-VGA)
4:3 76,800 YUY2 30fps/15fps
MJPG 30fps/15fps
