for 2/3″ Mega-pixel Cameras
Mega-pixel Macro Zoom Lens 3.3×(0.3× – 1.0×)
MLM-3XMP
|
|
|
 |
■Captures full resolution of megapixel cameras
■High contrast and sharp picture in all areas of the screen
■Compact design-Diameter 36.5mm
■Locking set screws for zoom,focus,and iris
■Low distortion
■High resolution macro zoom lens
■3.3× magnification
■Attachment of fiber ring light can be installed(Ring Guide:M34P=0.5)
|
|
|
|
| ■ Mega-Pixel Macro Zoom Lens 3× WD90 (0.3×–1.0×) |
Imager Size:2/3″, 1/1.8″, 1/2″, 1/3″ |
|
| Model No. |
MLM-3XMP |
| Magnification |
0.3× – 1.0× |
| Aperture Ratio |
1 : 45 |
| Max.Image Format |
8.8mm × 6.6mm(Φ11mm�j 2/3″ |
| Iris |
F4.5 – F22C |
| W.D. |
90mm |
| Effective Lens Aperture |
0.051 |
| Effective F No |
Front:Φ15.5mm�@Rear�FΦ7.0mm |
| Back Focal Length |
20.4mm |
| Distortion |
2/3″ |
0.3× Tele +0.02% (y=5.5)–1.0× Wide +1.78% (y=5.5) |
| 1/2″ |
0.3× Tele +0.12% (y=4.0)–1.0× Wide +0.77% (y=4.0) |
| Flange Back Length |
17.526mm |
| Mount |
C-Mount |
| Filter Size |
M34 P=0.5mm |

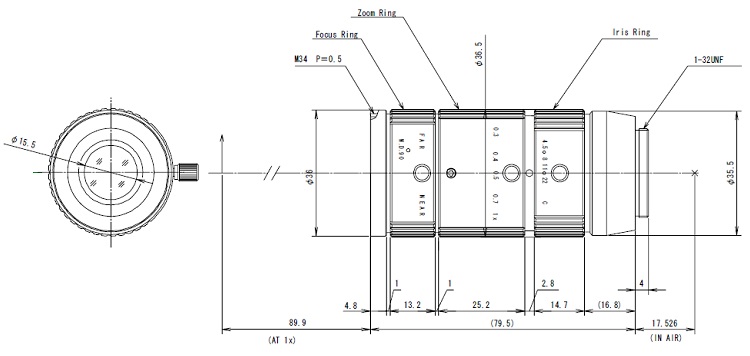

| Dimensions |
Φ36.5mm × 79.5mm |
| Weight |
150g |
| Field of View |
2/3″ |
29.3mm×22.0mm–8.8mm×6.6mm |
| 1/2″ |
21.3mm×16.0mm–6.4mm×4.8mm |
| Operating Temperature |
-10℃ – +50℃ |
|
|
|
|
|
|
