Mega-Pixel Macro Zoom Lens
Zoom ratio 6.0× (Optical Magnification 1.0–6.0×) , WD 60mm
IZ-6N
Mega-Pixel Macro Zoom Lens 6.0×(1.0×–6.0×)
■Zoom ratio 6.0×
■1.0x–6.0x Mag. ranges(Variable Zoom)
■1/4″–2/3″ sensor support
■compatible with Mega-pixel Camera
■WD 60.0mm
■Variable Diaphragm Mechanism
Specification
Model No. IZ-6N
Imager Size 1/4″, 1/3″, 1/2″, 2/3″
Zoom Ratio 6×
W.D. 60±3mm
Lens configuration 8nd lens group 16
Optical Magnification 1× 2× 3× 4× 5× 6×
NA 0.029 0.048 0.059 0.068 0.075 0.082
Working F# 17.24 10.42 8.47 7.35 6.67 6.10
Distortion 0.38% 0.1% 0.18% 0.22% 0.24% 0.26%
Field Depth 362.0μm 109.3μm 46.6μm 28.25μm 27.75μm 20.87μm
Resolution 11.56μm 6.99μm 5.69μm 4.93μm 4.47μm 4.09μm
Numerical aperture efficiency 100% 100% 100% 100% 100% 100%
Field of View
H×V(mm)		 1/4″ 3.49×2.62 1.65×1.24 1.12×0.84 0.83×0.62 0.68×0.51 0.57×0.43
1/3″ 4.50×3.38 2.13×1.60 1.43×1.07 1.09×0.82 0.88×0.66 0.74×0.56
1/2″ 6.98×5.24 3.30×2.48 2.24×1.68 1.66×1.25 1.36×1.02 1.14×0.86
2/3″ 8.91×6.68 4.45×3.34 2.97×2.23 2.23×1.67 1.62×1.34 1.48×1.11
Filter Thread M22.5P0.5

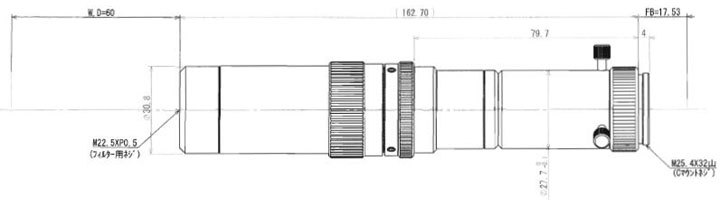

External Dimensions Φ30.8×L162.70mm
Weight 252g
