| Specification |
| Model No. |
IZ-1 |
IZ-2 |
IZ-3 |
| Imager Size |
1/4″, 1/3″, 1/2″ |
| Zoom Ratio |
4.0× |
| Optical Magnification |
0.25×–1× |
0.5×–2× |
0.75×–3× |
| W.D. |
175mm |
90mm |
56mm |
| 1/2″ | Monitor mag. |
11×–44× |
15×–59× |
33×–135× |
| Field of View |
25.6×19.2mm–6.4×4.8mm |
12.8×9.6mm–3.2×2.4mm |
8.5×6.4mm–2.1×1.6mm |
| 1/3″ | Monitor mag. |
15×–59× |
30×–118× |
44×–178× |
| Field of View |
19.2×14.4mm–4.8×3.6mm |
9.6×7.2mm–2.4×1.8mm |
6.4×4.8mm–1.6×1.2mm |
| 1/4″ | Monitor mag. |
20×–79× |
39×–158× |
59×–237× |
| Field of View |
14.4×10.8mm–3.6×2.7mm |
7.2×5.4mm–1.8×1.4mm |
4.8×3.6mm–1.2×0.9mm |
| Filter Thread |
M22.5P0.5 |
| Field Depth |
3.2mm–0.6mm |
1.4mm–0.4mm |
1.0mm–0.2mm |
| Resolution |
35μm–20μm |
25μm–10mm |
20μm–8μm |
| NA |
0.003–0.025 |
0.021–0.045 |
0.031–0.068 |

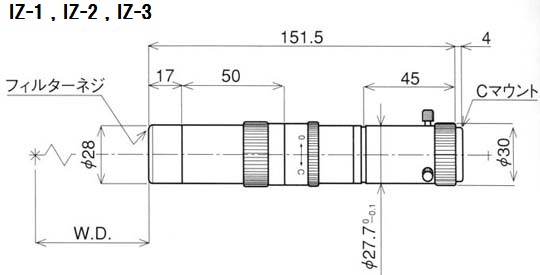

| Length |
151.5mm |
| Weight |
220g |
|
