1/2″ Manual Zoom Lens (Machine Vision Zoom Lens)
f=8-48mm F/1.0 (Model: HZ848M-mold)
SPACECOM
Zoom lens to be to operate focus and zoom by manually.
1/2″ / F1.0 / f=8-48mm / Mold Type
Zoom/Focus/Iris locking mechanism
Close-up photography as far as Object Distance 0.3m is possible by
S.N.(Service Near)function of Focus.
SPECIFICATIONS
Model No. HZ848M-mold
Focal Length 8 – 48mm
Maximum Relative Aperture 1 : 1.0
Iris F1.0 – Close
Angle of View 1/3″ 32.2° × 24.1°(at f=8mm) – 5.5° × 4.2°(at f=48mm)
1/2″ 43.6° × 33.4°(at f=8mm) – 7.7° × 5.7°(at f=48mm)
Image Size 6.4mm × 4.8mm(Φ8mm)
Minimum Object Distance 1.0m(From Front Vertex)
Close-up photography as far as Object Distance 0.3m is possible by
S.N.(Service Near)function of Focus. (Partial ecliipse may occur during zooming in the S.N. range with using 1/2″ camera.)
Optical Back Focal Distance 14.56mm(in Air)
Flange Back 17.526mm
Operation Focus:Manual , Zoom:Manual , Iris:Manual
Operating Temperature -10℃ – 50℃
Mount C-Mount
Filter Size 46mmP0.75

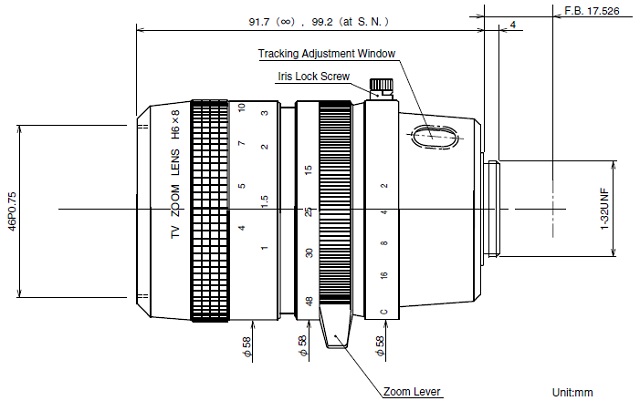

Size Φ58 × 102.4mm
Weight approx.395g
