2/3″ Manual Zoom Lens (Machine Vision Zoom Lens)
f=11.5-69mm F/1.4 DC Iris (Model: JZ1169DC)
SPACECOM
Zoom lens to be to operate focus and zoom by manually.
2/3″ / F1.4 / f=11.5-69mm4 / DC Iris
Zoom/Focus/Iris locking mechanism
Close-up photography as far as Object Distance 0.5m is possible by
S.N.(Service Near)function of Focus.
SPECIFICATIONS
Model No. JZ1169DC
Focal Length 11.5 – 69mm
Maximum Relative Aperture 1 : 1.4
Iris F1.4 – Approx.360(With ND Spot Filter)
Angle of View 1/3″ 23.2° × 17.4° – 4.0° × 3.0°
1/2″ 30.9° × 23.2° – 5.3° × 4.0°
2/3″ 41.9° × 32.0° – 7.3° × 5.5°
mage Size 8.8mm × 6.6mm(Φ11mm)
Minimum Object Distance 1.0m(From Front Vertex)
Close-up photography as far as Object Distance 0.5m is possible by
S.N.(Service Near)function of Focus. (Partial ecliipse may occur during zooming in the S.N. range with using 2/3″ camera.)
Field of View(at M.O.V) f=11.5mm : 72.8cm×54.6cm(S.N: : 36.4×27.3cm)
f=69mm : 12.8cm×9.6cm(S.N : 6.4×4.8cm)
Optical Back Focal Distance 17.93mm(in Air)
Flange Back 17.526mm
Operation Focus : Manual , Zoom : Manual , Iris : IG(Auto Close System)
Close to Open : Less than 4.0V
Open to Close : More than 0.1V
Speed Within 4sec.
Operating Temperature -10℃ – 50℃
Mount C-Mount(Adjustable Lens Position)
Filter Size 46mmP0.75

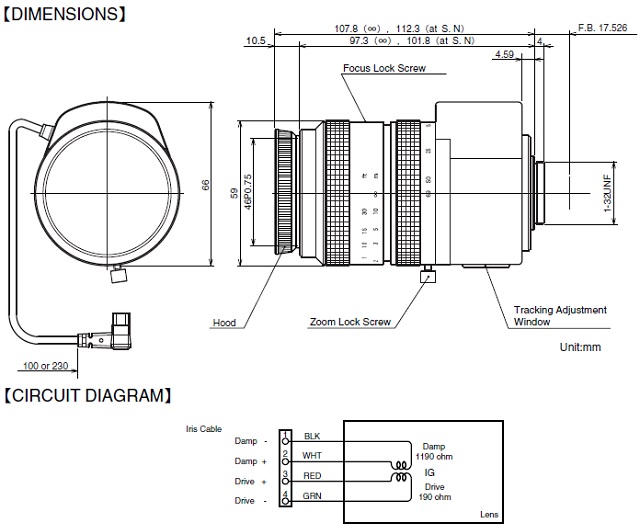

Size 66mm × 59mm × 97.3mm
Weight Approx.415g
