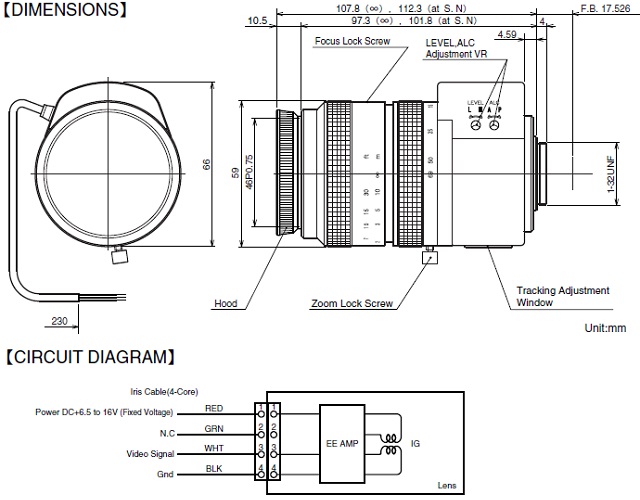

| SPECIFICATIONS |
| Model No. |
JZ1169AI |
| Focal Length |
11.5 – 69mm |
| Maximum Relative Aperture |
1 : 1.4 |
| Iris |
F1.4 – Approx.360(With ND Spot Filter) |
| Angle of View |
1/3″ |
23.2° × 17.4° – 4.0° × 3.0° |
| 1/2″ |
30.9° × 23.2° – 5.3° × 4.0° |
| 2/3″ |
41.9° × 32.0° – 7.3° × 5.5° |
| mage Size |
8.8mm × 6.6mm(Φ11mm) |
| Minimum Object Distance |
1.0m(From Front Vertex)
Close-up photography as far as Object Distance 0.5m is possible by
S.N.(Service Near)function of Focus.
(Partial ecliipse may occur during zooming in the S.N. range with using 1/2″ camera.)
|
| Field of View(at M.O.V) |
f=11.5mm : 72.8cm×54.6cm(S.N: : 36.4×27.3cm)
f=69mm : 12.8cm×9.6cm(S.N : 6.4×4.8cm) |
| Optical Back Focal Distance |
14.56mm(in Air) |
| Flange Back |
17.526mm |
| Input Signal |
Composite Video Signal, Video Signal |
| Sensitivity Adjustment |
0.3–1.0Vp-p(Image Signal) |
| Photometry Range |
Approx.40–70% Variable to Vp-p |
| Input Impedance |
High Impedance |
| Operation |
Focus : Manual , Zoom : Manual , Iris : EE(DC+6.5 to 16V:Max40mA) |
| EE Mechanism |
The built-in EE Amp amplifies the difference between the video signal from the camera and the preset Iris signal level.
It causes the Iris to change size. |
| EE Accuracy |
With Input Video Signal 0.7Vp-p
Within±10% of Mean Value |
| Operating Temperature |
-10℃ – 50℃ |
| Mount |
C-Mount(Adjustable Lens Position) |
| Filter Size |
46mmP0.75 |
| Size |
66.0mm × 59.0mm × 97.3mm |
| Weight |
Approx.400g |
