2/3″ Manual Zoom Lens (Machine Vision Zoom Lens)
f=11.5-69mm F/1.4 (Model: JZ1169M-mold)
SPACECOM
Zoom lens to be to operate focus and zoom by manually.
2/3″ / F1.4 / f=11.5-69mm / Mold Type
Zoom/Focus/Iris locking mechanism
Close-up photography as far as Object Distance 0.3m is possible by
S.N.(Service Near)function of Focus.
SPECIFICATIONS
Model No. JZ1169M-mold
Focal Length 11.5 – 69mm
Maximum Relative Aperture 1 : 1.4
Iris F1.4 – Close
Angle of View 1/3″ 23.2° × 17.4° – 4.0° × 3.0°
1/2″ 30.9° × 23.2° – 5.3° × 4.0°
2/3″ 41.9° × 32.0° – 7.3° × 5.5°
Image Size 8.8mm × 6.6mm(Φ11mm)
Minimum Object Distance 1.0m(From Front Vertex)
Close-up photography as far as Object Distance 0.3m is possible by
S.N.(Service Near)function of Focus. (Partial ecliipse may occur during zooming in the S.N. range with using 2/3″ camera.)
Optical Back Focal Distance 17.93mm(in Air)
Flange Back 17.526mm
Operation Focus:Manual , Zoom:Manual , Iris:Manual
Operating Temperature -10℃ – 50℃
Mount C-Mount
Filter Size 46mmP0.75

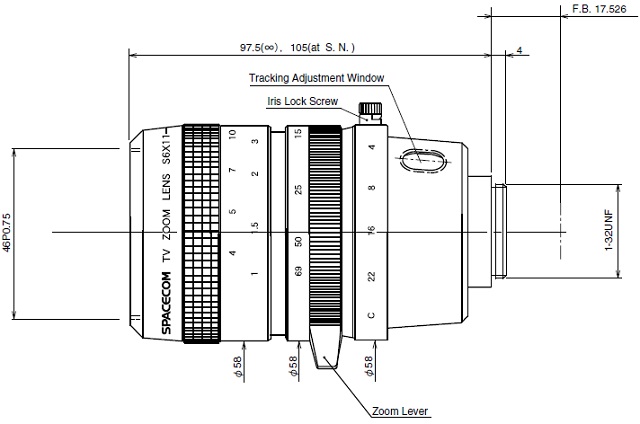

Size Φ58 × 107.8mm
Weight approx.395g
