1/2.8″ Full HD CMOS HD-TVI Camera
WAT-2300
WATEC CO.,LTD.
|
|
|
 |
■1/2.8-inch 2M CMOS image sensor with high sensitivity
■Min. illumination 0.1 lx F1.2 (AGC HIGH=66dB, Shutter=OFF)
■Full HD 1080/30p resolution with HD-TVI, Analog-HD, interface and low latency & degradation
■Long distance transmission without boost (3C-2V:150m, 5C-2V:300m)
■Existing infrastructure doesnʼt need to be replaced, just change their old analog cameras and
DVRs to TVI cameras and DVRs to get a brand new 1080p surveillance system without extra cost
■OSD (On Screen Display) – Easy installation through a controller provided in kit
|
| Specifications |
| Model Number |
WAT-2200 |
| Pick-up element |
1/2.8 inch CMOS image sensor |
| Number of effective pixels |
1944(H) × 1224(V) |
| Unit cell size |
2.8μm × 2.8μm |
| Imaging system |
RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system |
Internal |
| Scanning system |
Progressive |
| Video output |
HD-TVI |
| Output format |
1080/30p, 1080/25p, 720/60p, 720/50p, 720/30p, 720/25p |
| Minimum illumination |
0.1 lx F1.2 (AGC HIGH=66dB, Shutter=OFF) |
| S/N |
More than 50dB (AGC OFF=0dB, γ=1.0) |
| Function settings |
OSD : Remote controller, Communication : RS-232 |
| AE mode |
Fixed |
1/30, 1/100, 1/120, 1/200, 1/500, 1/1000, 1/2000, 1/5000, 1/10000 sec. (Depends on Output format.) |
| EI |
1/30 - 1/10000 sec. (Depends on Output format.) |
| White balance |
ATW, PWB, MWB, PRESET (3200K, 4300K, 5100K, 6300K) |
| AGC |
ON |
0 - 32dB (LOW), 0 - 42dB (MID), 0 - 66dB (HIGH) |
| OFF |
– |
| MGC |
0 – 30dB |
| Day/Night |
– |
| Noise reduction |
2DNR OFF/ON Level adjustable |
| Wide dynamic range |
D-WDR OFF/ON Level adjustable |
| Lens iris |
DC |
| Back light compensation |
BLC |
| White blemish correction |
Up to 1023 pixels |
| Sharpness |
Level adjustable |
| Defog |
ON / OFF |
| Digital zoom |
– |
| Privacy mask |
16 masks |
| Mirror image |
OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze |
– |
| Motion detection |
– |
| Neg.image |
– |
| Interface |
BNC (HD-TVI), Power in, Auto iris, miniDIN8P (RC-02, RS-232) |
| Power supply |
DC+12V}10% |
| Power consumption |
1.92W/160mA (720p60 oΝ) |
| Operating temperature |
-10`+50 |
| Storage temperature |
-30`+70 |
| Operating / Storage humidity |
95%RHΘΊ(I΅Θ’±Ζ) |
| Lens mount |
CS }Eg |
| Weight |
ρ130g |
| Accessories |
WPDC12-R (DC vO)AZp`ARC-02 ( κpR)AOrA_v^ |
|

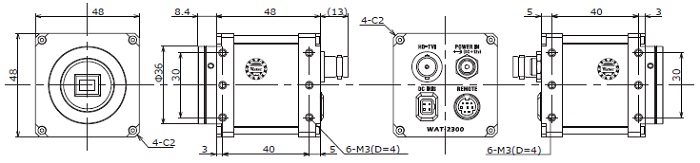

Dimensional outline drawing
|
|
|
|

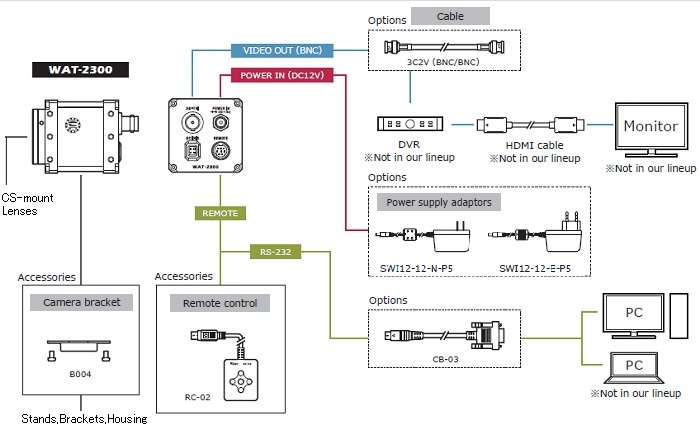

‘System Configuration
|
|
|
|
|
‘Options
|
| Model |
Product name |
Specifications |
Safety standard |
| SWI12-12-N-P5 |
AC adaptor |
DC12V / 1.0A |
UL/cUL, PSE, FCC |
| SWI12-12-E-P5 |
AC adaptor |
DC12V / 1.0A |
CE |
| 30CMA-R |
C-mount adaptor |
Mount:U1-32UN |
– |
|
|
|
|
